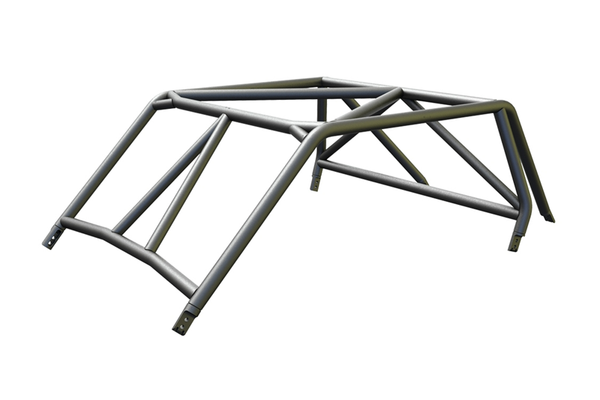

Ready-to-weld Roll Cage Kit for Polaris® XP 1000 (2019-2023) / XP Turbo (2019-2023) / XP Turbo S (2018-2023)
The Baja Spec is our only flat top designed UTV roll cage and the only SCORE™ and BITD legal roll cage (doors not included) we produce. We build this kit using the same laser cut and CNC mandrel bent DOM steel tubes as in all of our kits. We have increased the diameter of the internal tubes to 1.5 and added a V-bar design in the roof for added strength and protection. Our kits come complete with all 6 chassis clamps, laser cut and CNC mandrel bent tubes, shock reservoir mounts, and 2 whip/tab mounts. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture. Everything needed to replace the stock roll cage is provided. Kit must be assembled and welded by a competent fabricator. Instructions are NOT included in the box, and all documents for the kit are available from this webpage.
Specification
- High grade DOM steel used on all tubes
- 1.75 diameter main tubes
- .095 wall thickness on all tubes
- 4.5 lower than stock XP1000 cage in rear
- .6 lower than stock XP1000 cage in front
- Mounts to all six stock locations
- Includes all six chassis clamps
- Includes rear shock reservoir mounts
- Includes 2 whip/tab mounts
- 80 lbs. complete cage weight
What's In The Box?
- 16 Laser Cut DOM Steel Tubes
- Main tubes are 1.75Ø x .095 Wall
- 6 CNC Machined Chassis Clamps
- 4 Reservoir Mounts
